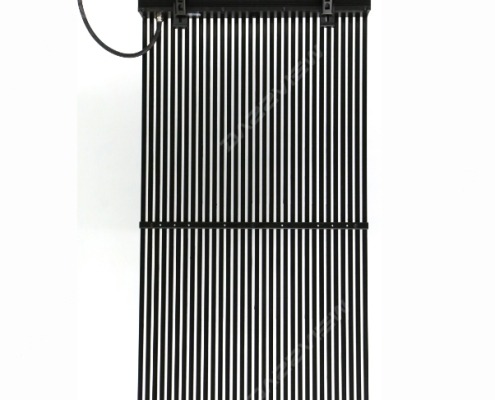

Light weight transparent mesh LED display is a ideal solution for outdoor advertising which require a light weight of LED screen body. Besides the light weight, the light and air can go through the mesh LED screen cabinet.

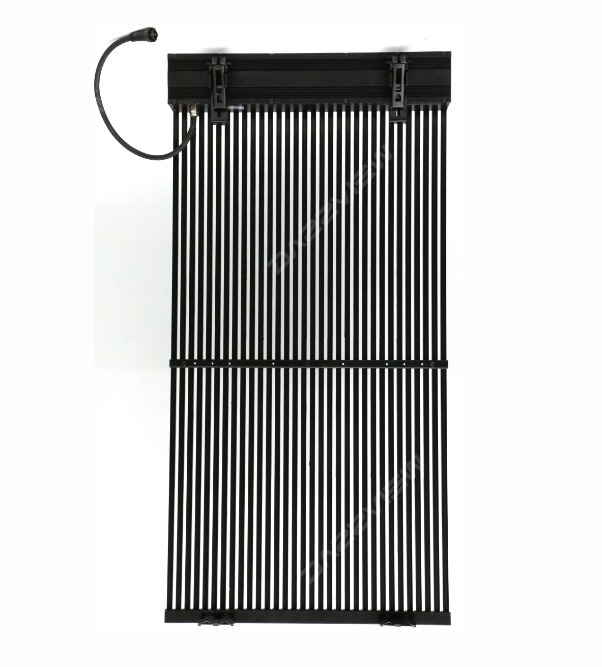

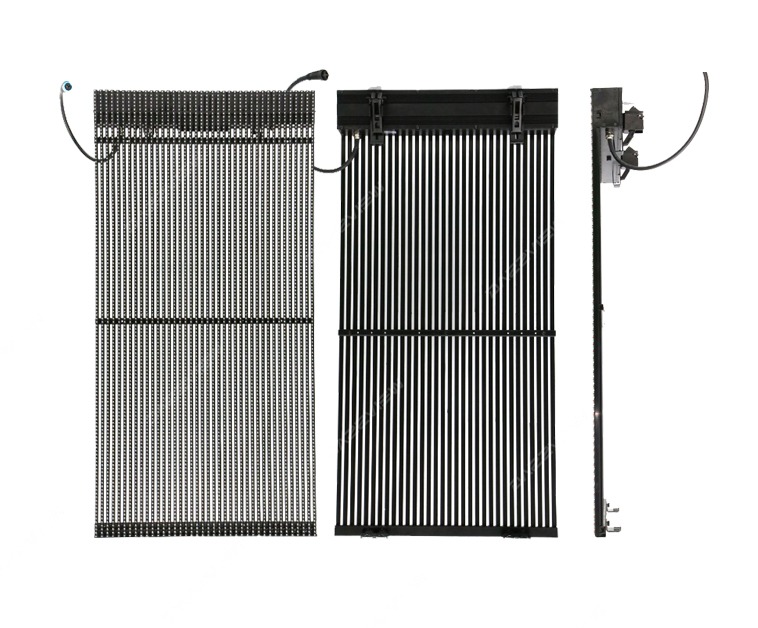

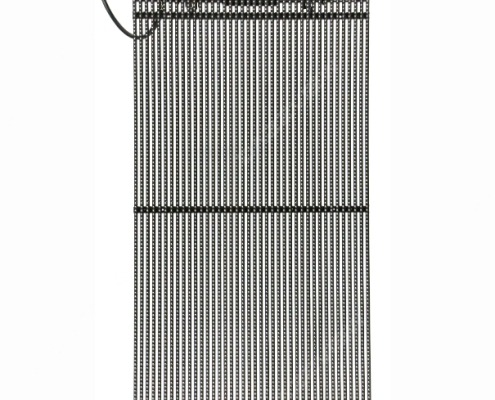

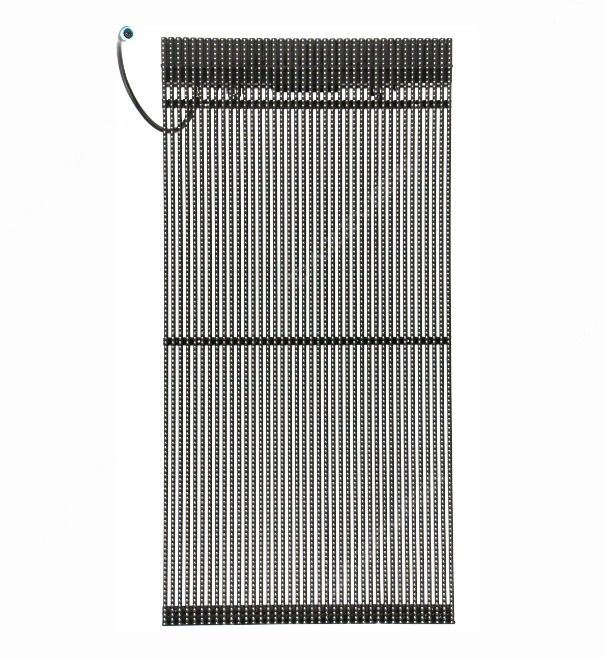

Product Name: Light Weight Transparent Mesh LED Display
Product Model: M series
Product Description:
Light, less than 20kg/㎡
Transparent, 25%-80%
Ventilate, 25%-80%
Easy Installation
High waterproof rate, IP67
High brightness and good performance DOOH commercial LED display attract people’s eyes, make your brand stand out from crowd!
Where to see mesh screen?

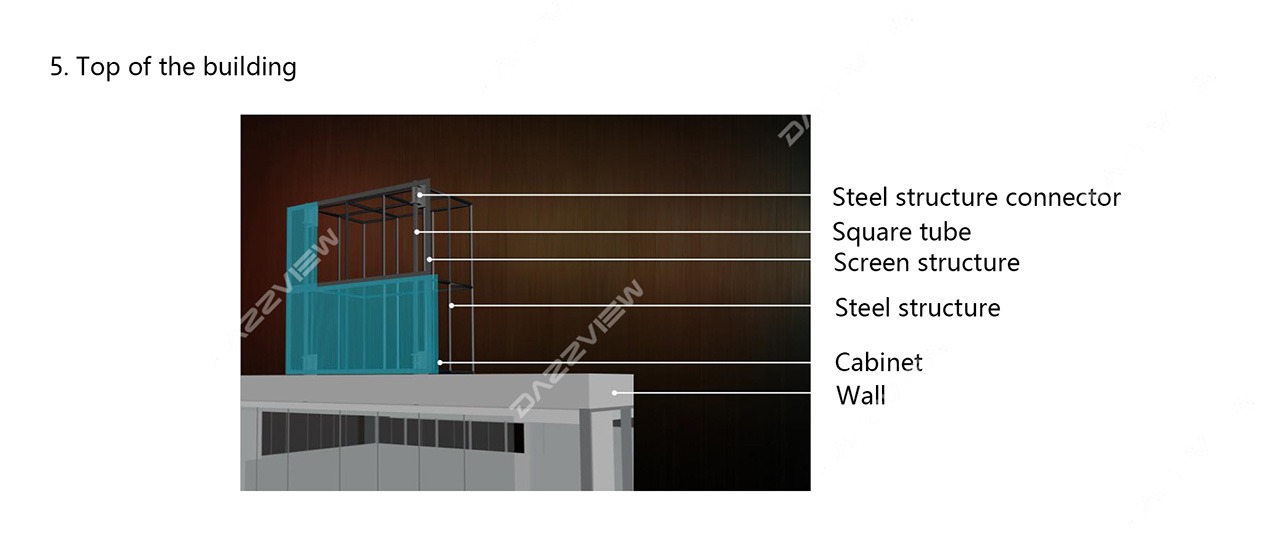

You can see the mesh LED display screen on top of building, for rental, on the wall of building, on pole, above shopping mall entrance door, ceiling of the hall…

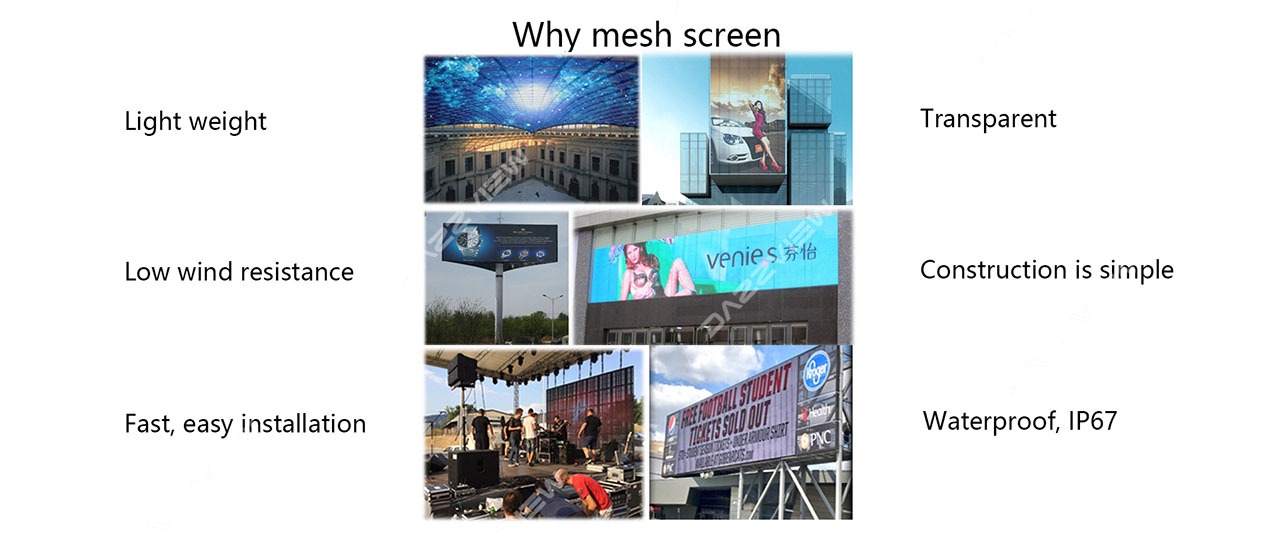

Why mesh screen?
Light weight,
Low wind resistance,
Fast, easy installation,
Transparent,
Construction is simple,
Waterproof, IP67.

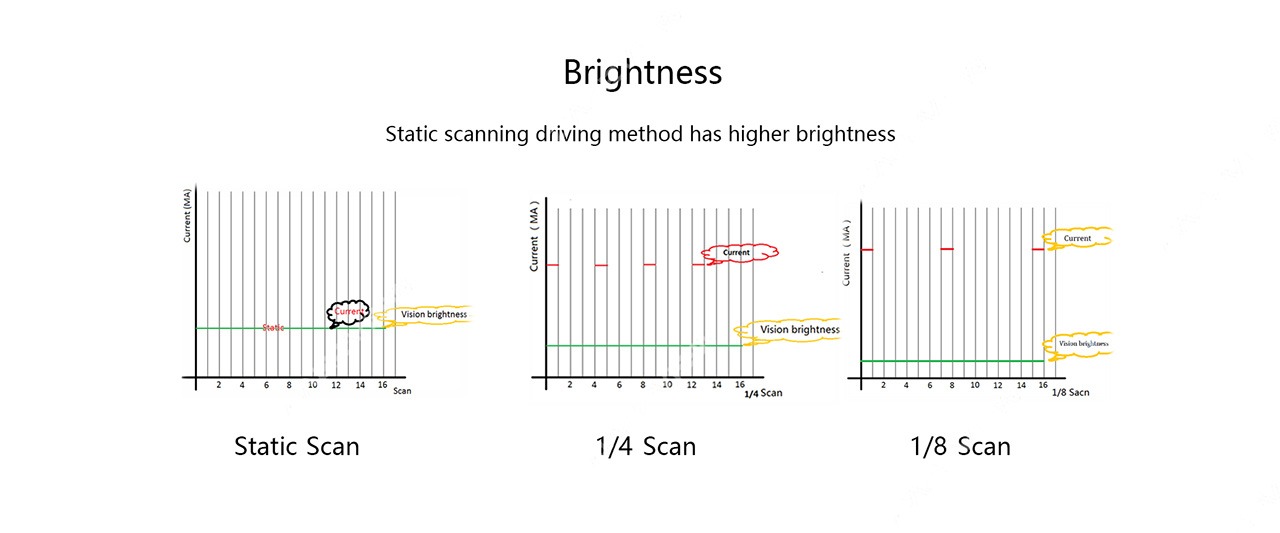

Static scanning driving method makes our mesh LED display screen in a higher brightness.

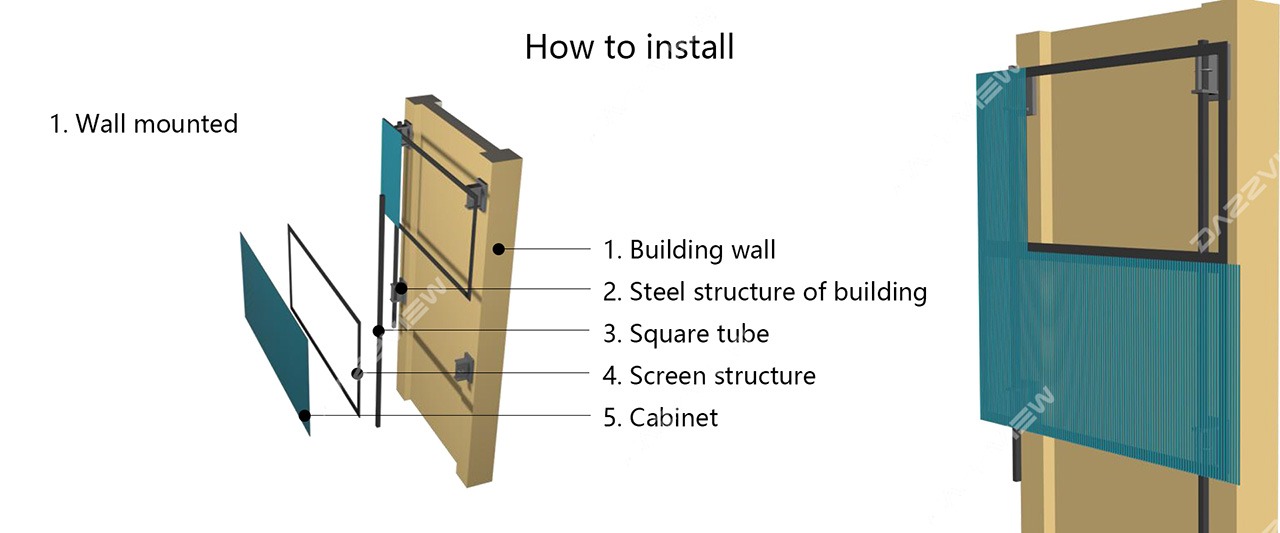

1. Fix the steel structure to the building wall,
2. Fixed the cabinet on to the structure.

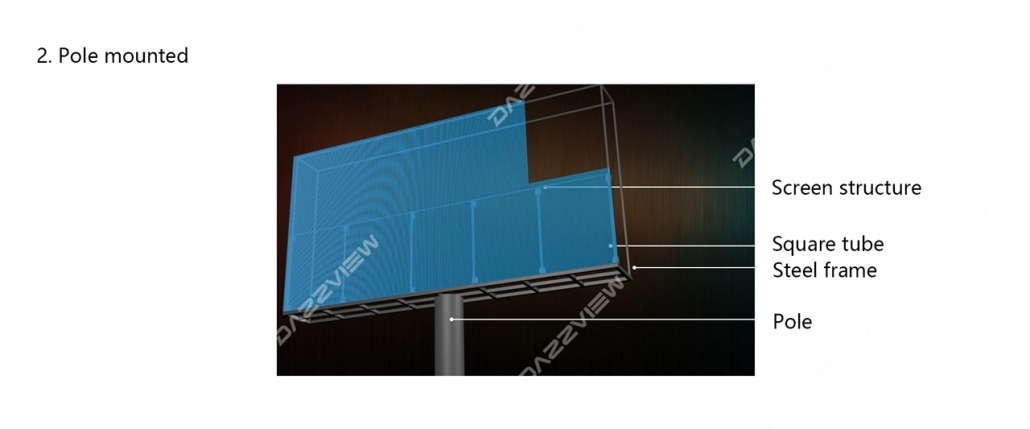

Fix the mesh LED display screen on the pole like a tranditional billboard LED display.

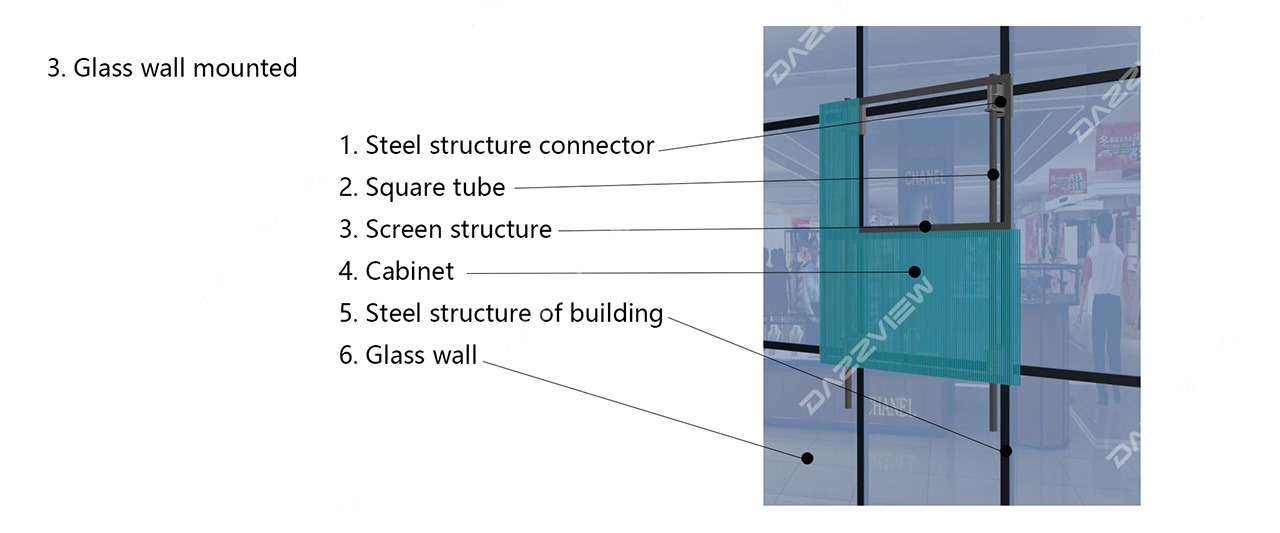

Mesh LED display especially suitable to be installed behind the glass window, such as the glass wall of the mall project.
1. Install the structure on the glass wall,
2. Assembly the cabinet on the customized steel structure.

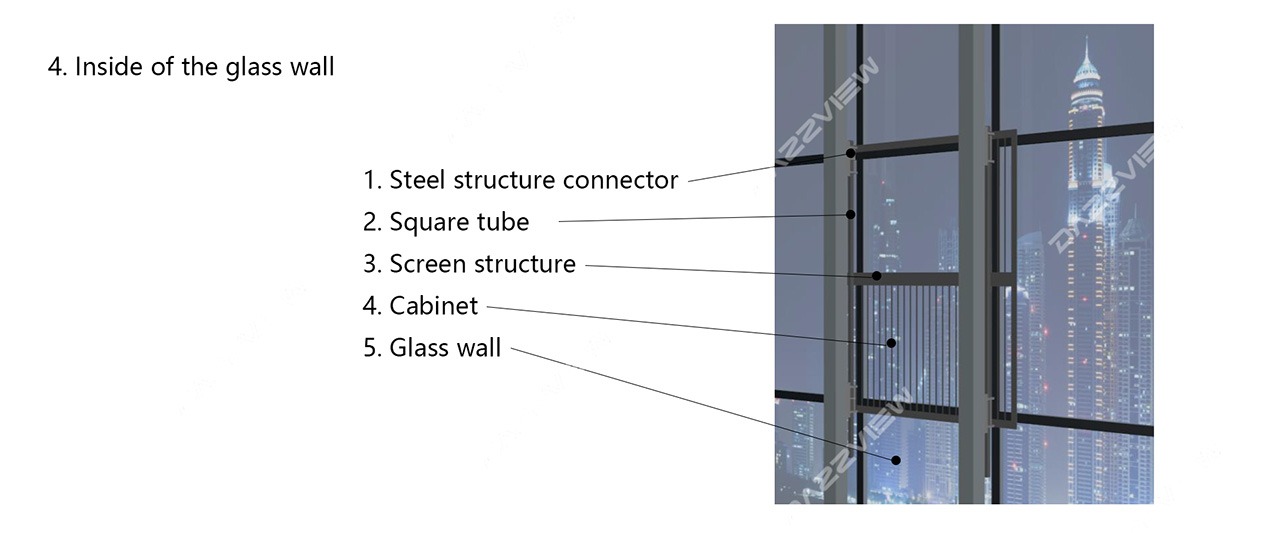

1. Prepare the back steel structure in advance,
2. Install the mesh LED display one by one onto the structure.

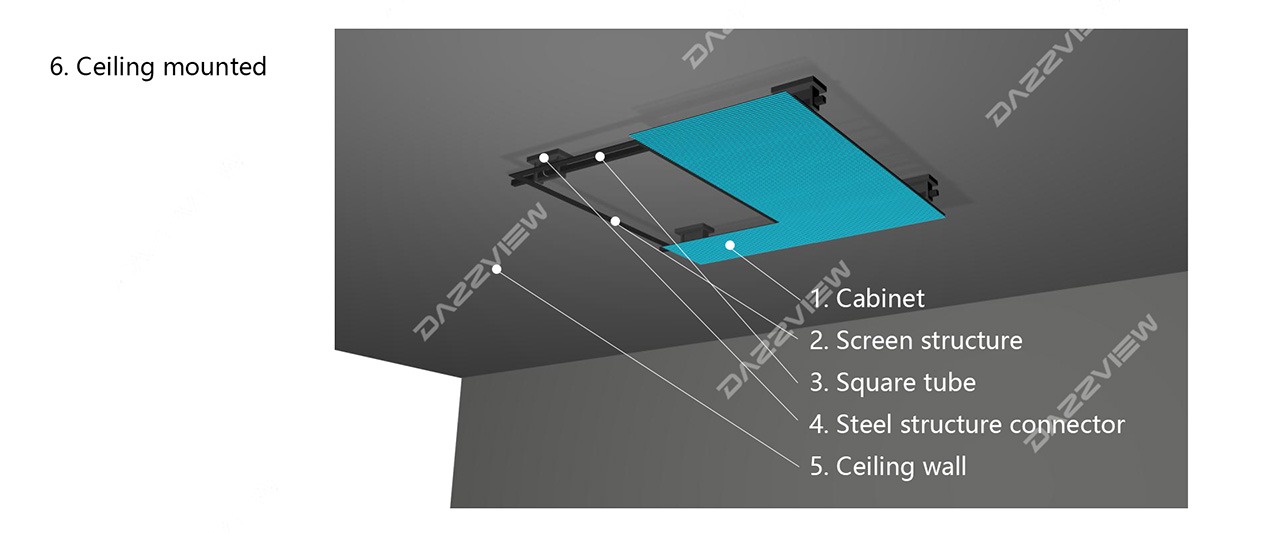

Because of the light weight, the mesh LED display screen is also suitable to install with ceiling mounted. The zoo park with a big entrance ceiling or a shopping mall with big ceiling are very suitable to do the ceiling mounted.

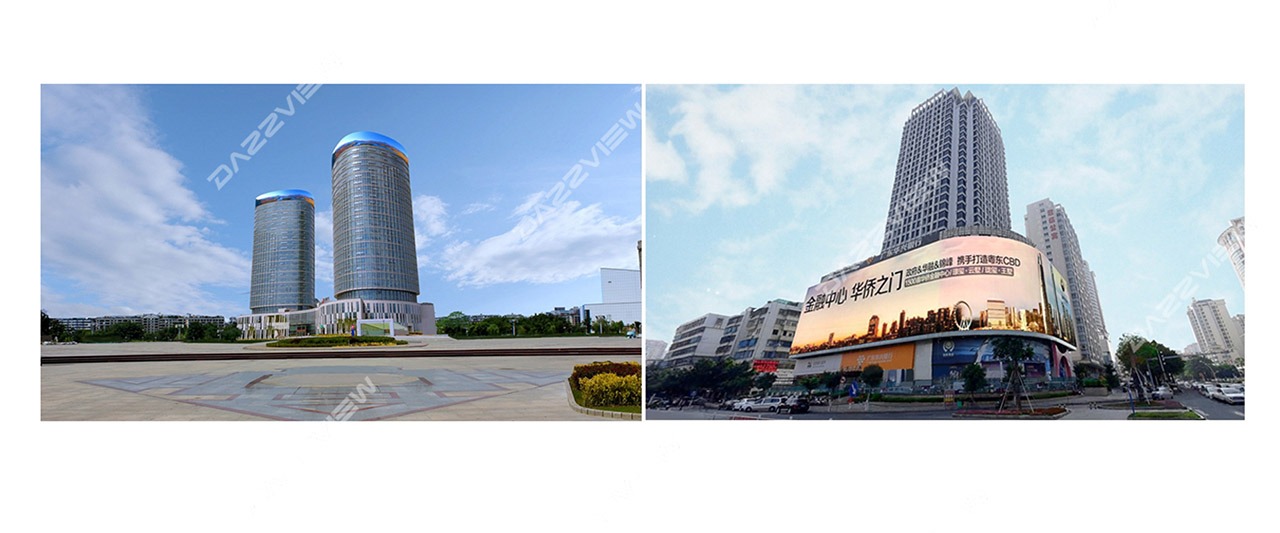

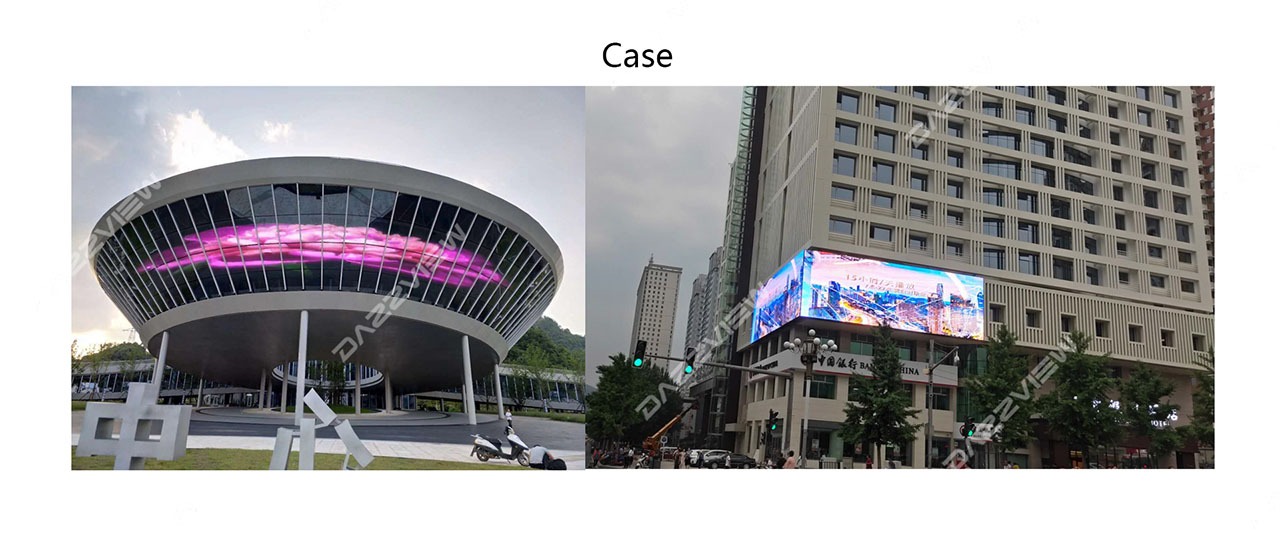

Dazzview’s successful cases like glass wall mounted mesh LED display is popular solution for the transparent LED display applications which can easily attract people’s attention. It’s a good solution to do the advertising.
Even on the tall building, our tranparent mesh LED display screen can also has good performance. It’s easy to build a large LED display wall, the biggest advantage is light weight with transparent.
| Specification | |||
| Model NO. | MS712 | MS715 | MS1515 |

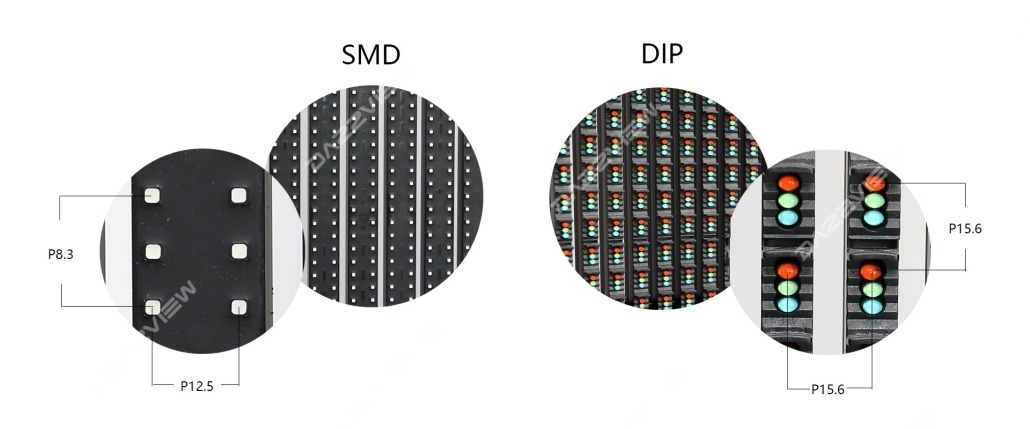

| Pixel Pitch | 7.8mm-12.5mm | 7.8mm-15.6mm | 15.6mm-15.6mm |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Density | 10240dots/m² | 8192dots/m² | 4096dots/m² |
| Size of cabinet(W*H) | 500x1000mm | 500x1000mm | 500x1000mm |
| Resolution of cabinet(W*H) | 40x128dot | 32x128dot | 32x64dot |
| Transparency | 25% | 38% | 38% |
| Weight of cabinet | 9.5Kg/pc | 8.5Kg/pc | 7.5Kg/pc |
| Best viewing distance | >10m | >12m | >15m |
| Best viewing angle | 120° | 120° | 120° |
| Brightness | ≥7000cd/m² | ≥6500cd/m² | ≥5000cd/m² |
| Maximum power consumption | 800W/m² | 700W/m² | 450W/m² |
| Average power consumption | 240W/m² | 210W/m² | 135W/m² |
| Driving method | Static | Static | Static |
| Gray scale | 14 bits | 14 bits | 14 bits |
| Refresh frequency | 1920Hz | 1920Hz | 1920Hz |
| IP grade | IP68 | IP68 | IP68 |
| Colors | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours |
| Specification | |||||
| Model NO. | MD1515 | MD1531 | MD2525 | MD3131 | MD2550 |
| Pixel Pitch | 15.6mm-15.6mm | 15.6mm-31.2mm | 25mm-25mm | 31.2mm-31.2mm | 25mm-50mm |
| LED Type | DIP346 | DIP346 | DIP346 | DIP346 | DIP346 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Density | 4096/m² | 2048/m² | 1600/m² | 1024/m² | 800/m² |
| Size of cabinet(W*H) | 500x1000mm | 500x1000x67mm | 500x1000mm | 500x1000mm | 500x1000mm |
| Resolution of cabinet(W*H) | 32x64dot | 16x64dot | 20x40dot | 16x32dot | 10x40dot |
| Transparency | 38% | 69% | 61% | 69% | 80% |
| Weight of cabinet | 10Kg/pc | 8Kg/pc | 7.5Kg/pc | 6.5Kg/pc | 6Kg/pc |
| Best viewing distance | >15m | >16m | >25m | >31m | >40m |
| Best viewing angle | 110°/70° | 110°/70° | 110°/70° | 110°/70° | 110°/70° |
| Brightness | ≥7500cd/m² | ≥6500cd/m² | ≥6000cd/m² | ≥6500cd/m² | ≥2500cd/m² |
| Maximum power consumption | 450W/m² | 380W/m² | 380W/m² | 350W/m² | 300W/m² |
| Average power consumption | 135W/m² | 120W/m² | 120W/m² | 105W/m² | 90W/m² |
| Driving method | Static | Static | Static | Static | Static |
| Gray scale | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits |
| Refresh frequency | 1920Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
| IP grade | IP68 | IP68 | IP68 | IP68 | IP68 |
| Colors | 16777216 | 16777216 | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
