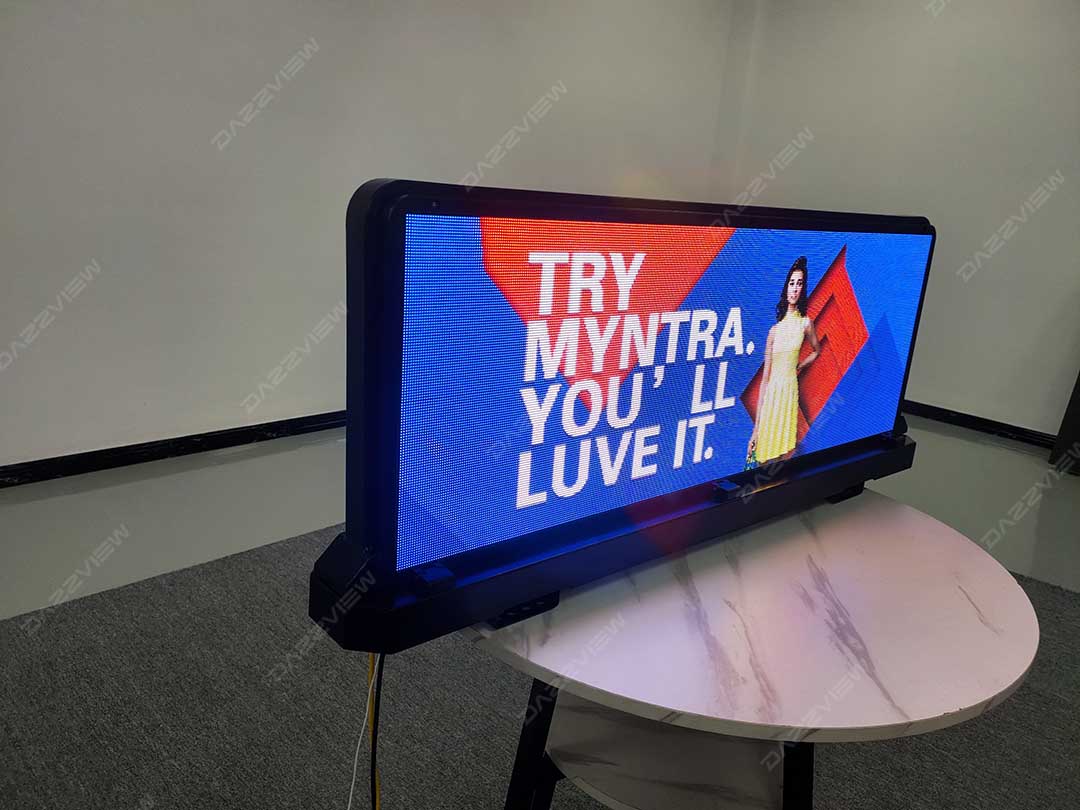

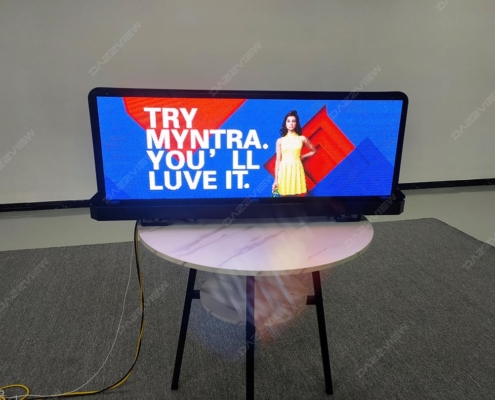

Taxi Top LED Display Steel Cabinet

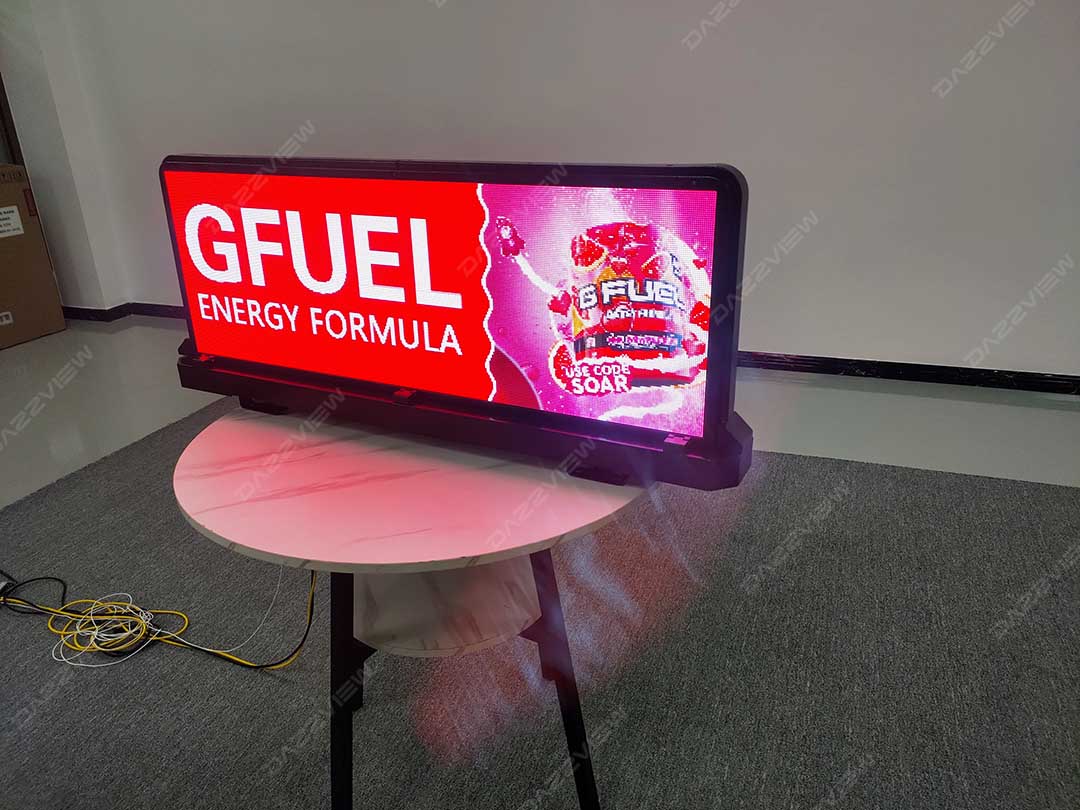

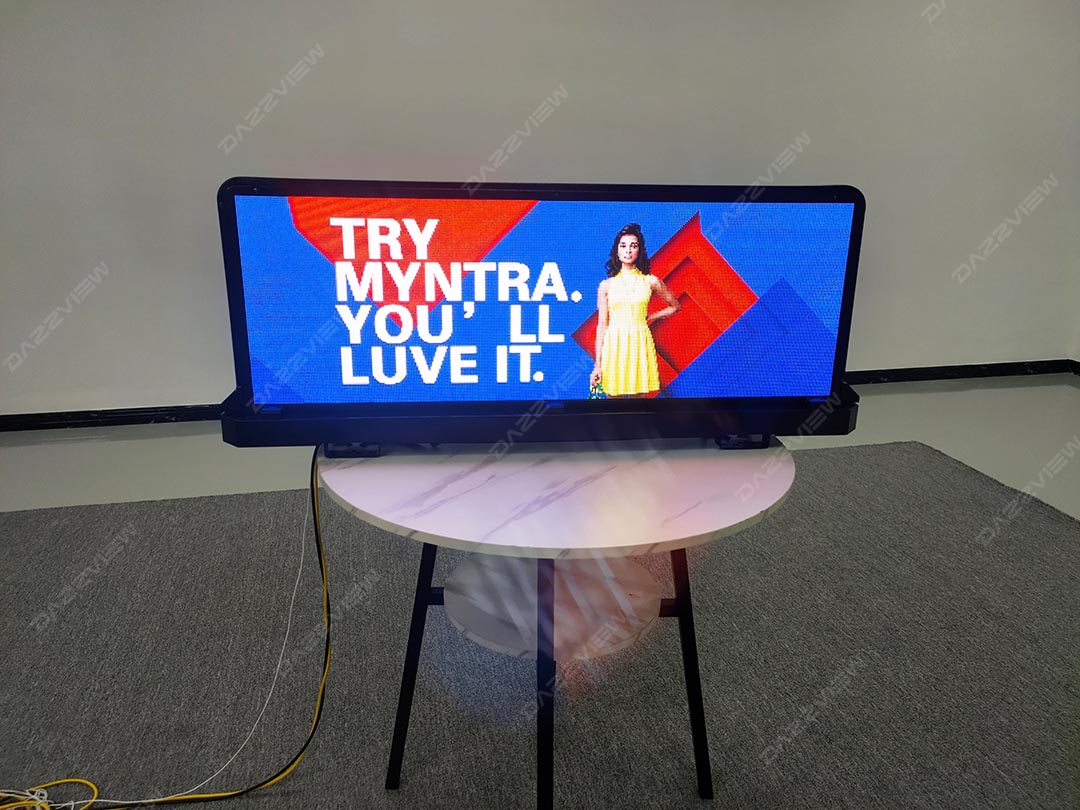

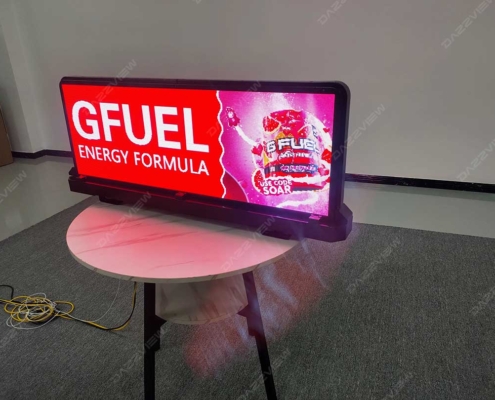

Taxi Top LED Display, a high-resolution advertising solution on the top of a taxi. Ideal for displaying advertisements, promotions and other content to passers-by on the street.
TAXI Top LED Display Steel Cabinet
Product Name: TAXI Top LED Display Aluminum Cabinet
Product Model: TTS series
Product Description:
Outdoor Mobile media advertising transmitter
Your ads would through the crowds, spreading to everyone and everywhere.
Less weight design
Each unit weighs 19kg in total, making it durable enough for outdoor use.
High brightness
More than 4000cd/㎡ brightness but with low consumption.
Passed Shock test
To ensure its operability and safety, we did shock tests.
GPS fixed-point playback
Change ADs by location, such as showing KFC video when taxi led sign arriving KFC shop.
Multi-control method
4G, 4G WCDMA/USB or WIFI/USB optional.

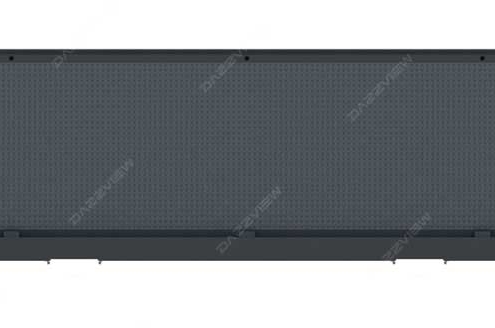

Light weight design with Steel Cabinet!

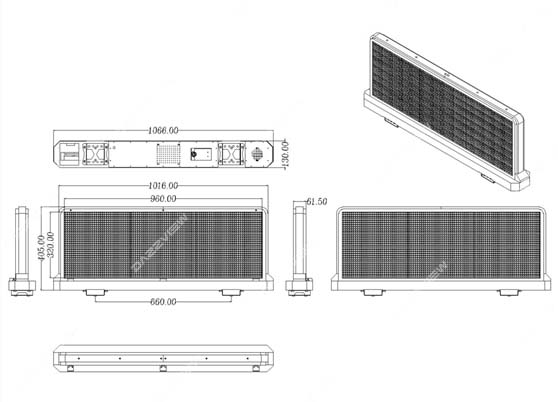

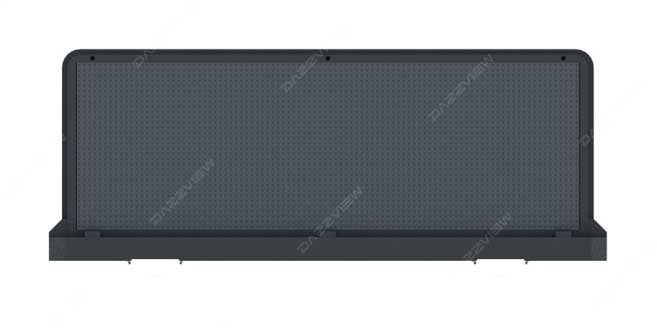

960 x 320mm display size, 1106 x 408 x 141mm cabinet size.
Each unit weighs 19kg in total which made of aluminum material, making it durable enough for outdoor use.
High brightness!
More than 4000cd/㎡ brightness but with low consumption.

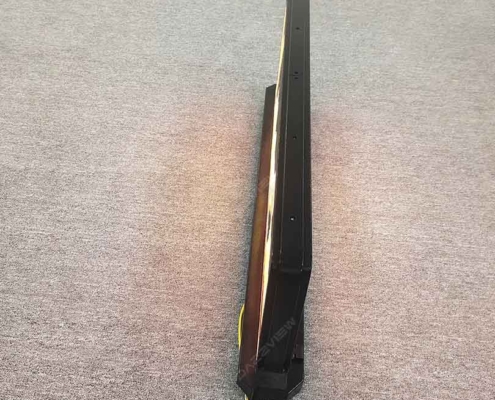

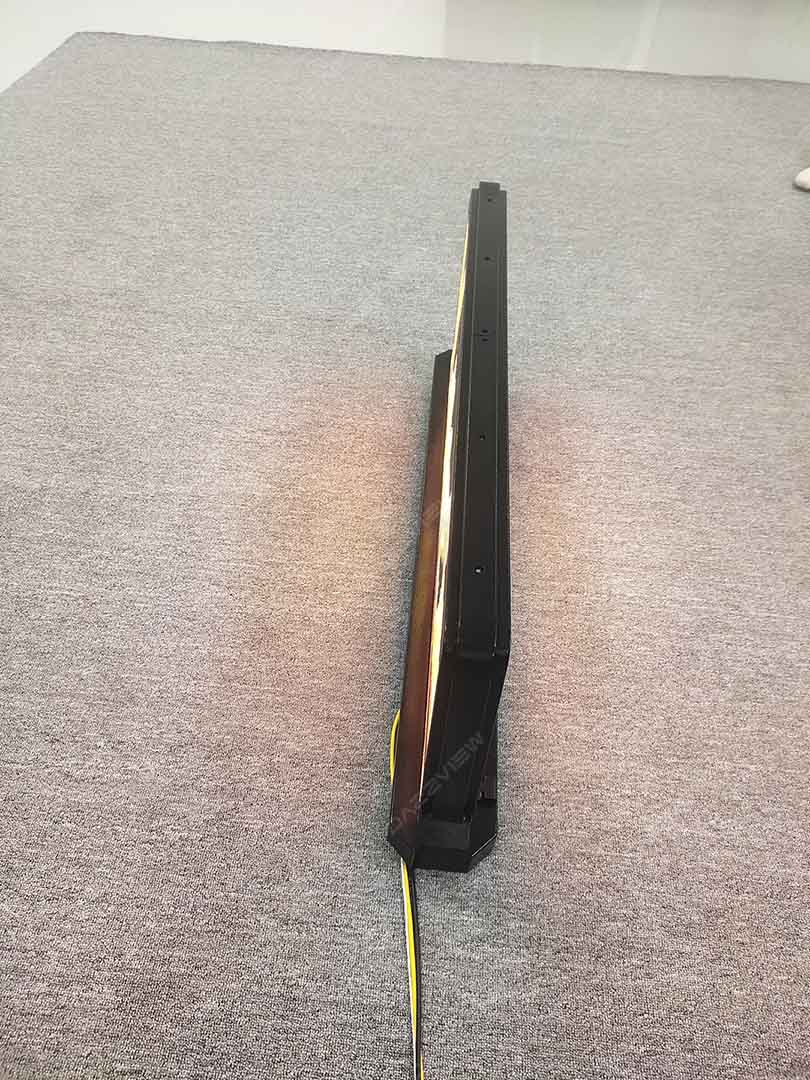

Super Slim Design! & Multi-control method and GPS fixed-point playback!

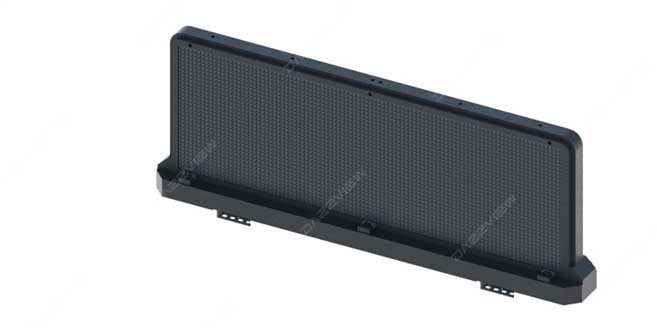

The depth of the taxi top LED display is very slim in order to reduce the wind resistance and light weight design, also the reduce the cost for competitive price to win the project.
Change ADs by location, such as showing KFC video when taxi led sign arriving KFC shop.
4G, 4G WCDMA/USB or WIFI/USB are optional.
Optimum Performance in Any Environment!
High waterproof rate: IP65. High Refresh rate: 3840Hz.
Stable working for outdoor use.
Easy to Install and Use!

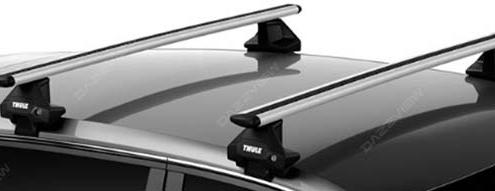

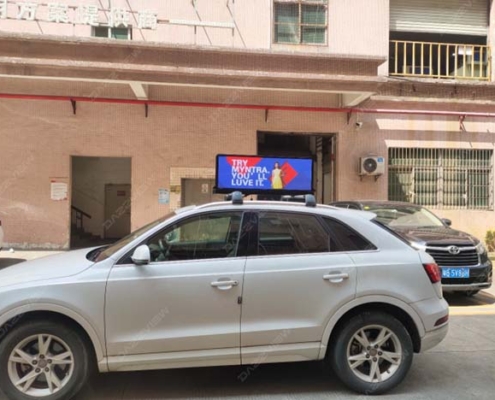

The screen is standing on top of the car with the bracket.

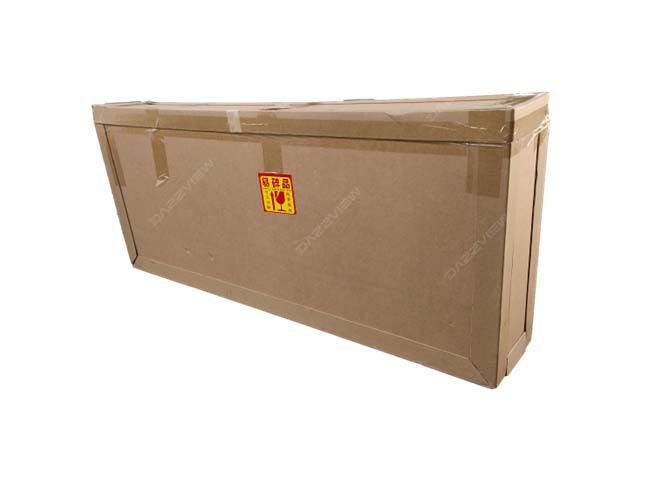

Well Packed to Protect the Taxi Top LED display Well!
The Taxi Top LED screen will be packed in honeycomb carton box with light weight also strong protection.

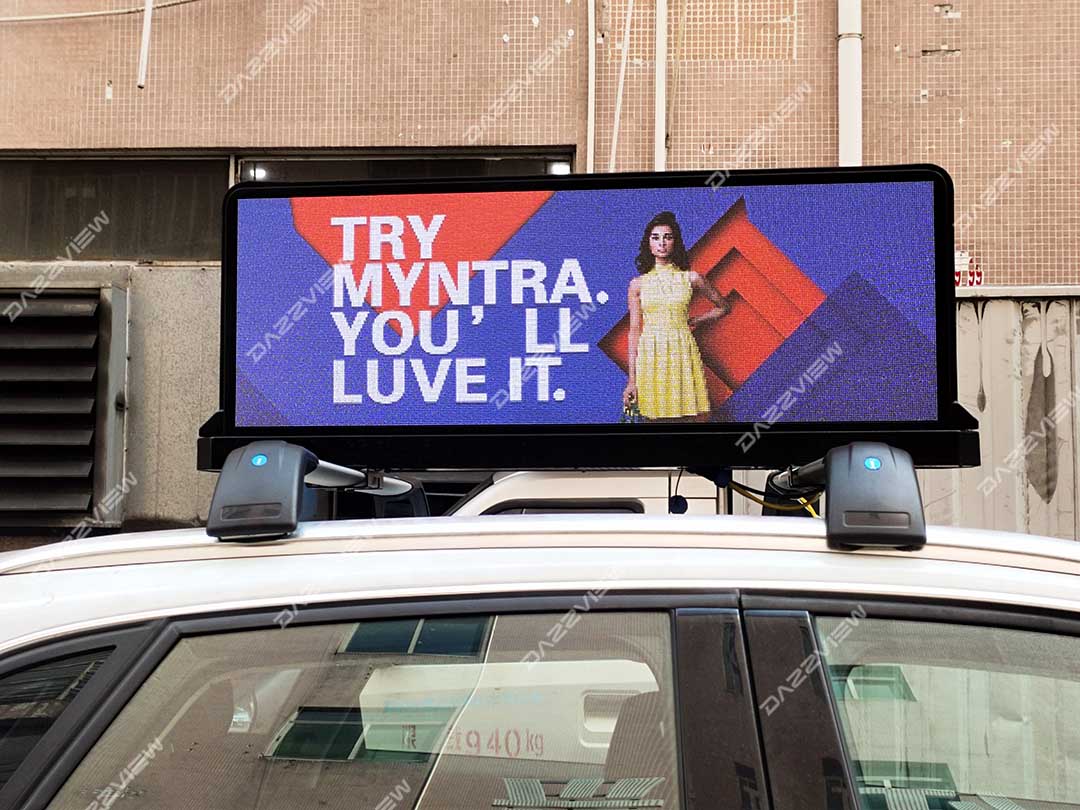

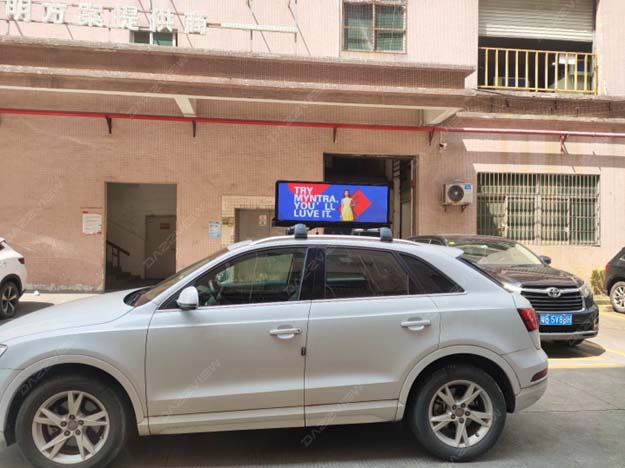

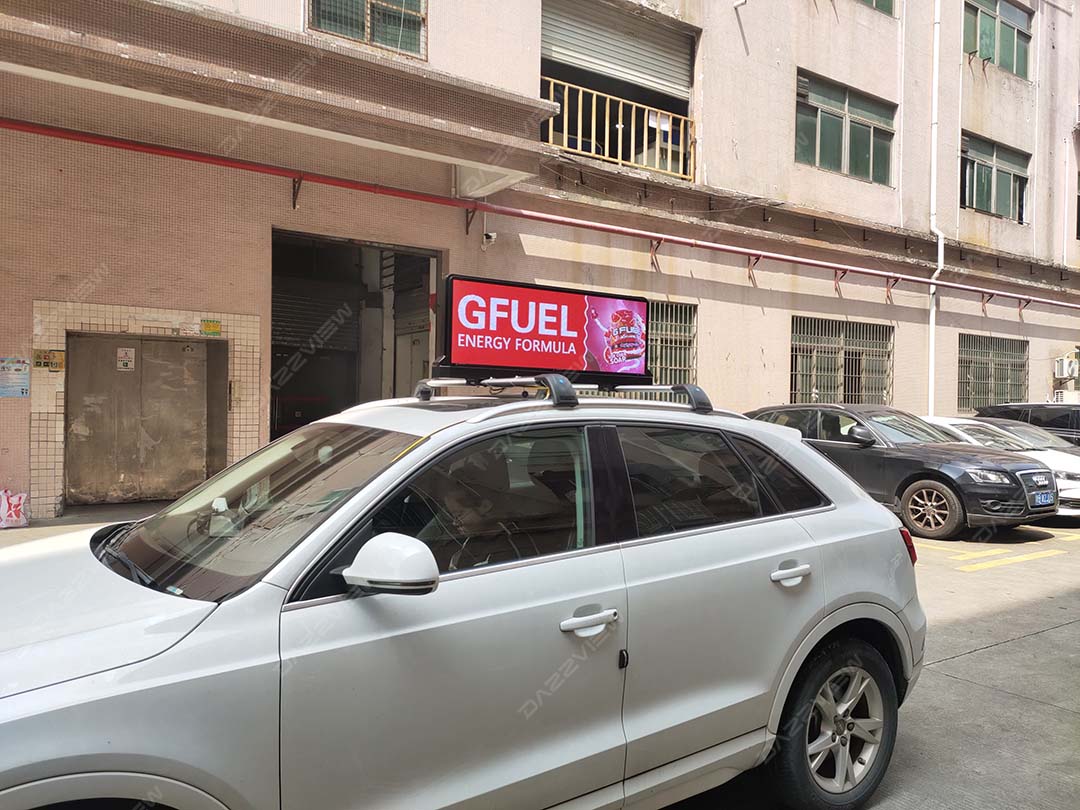

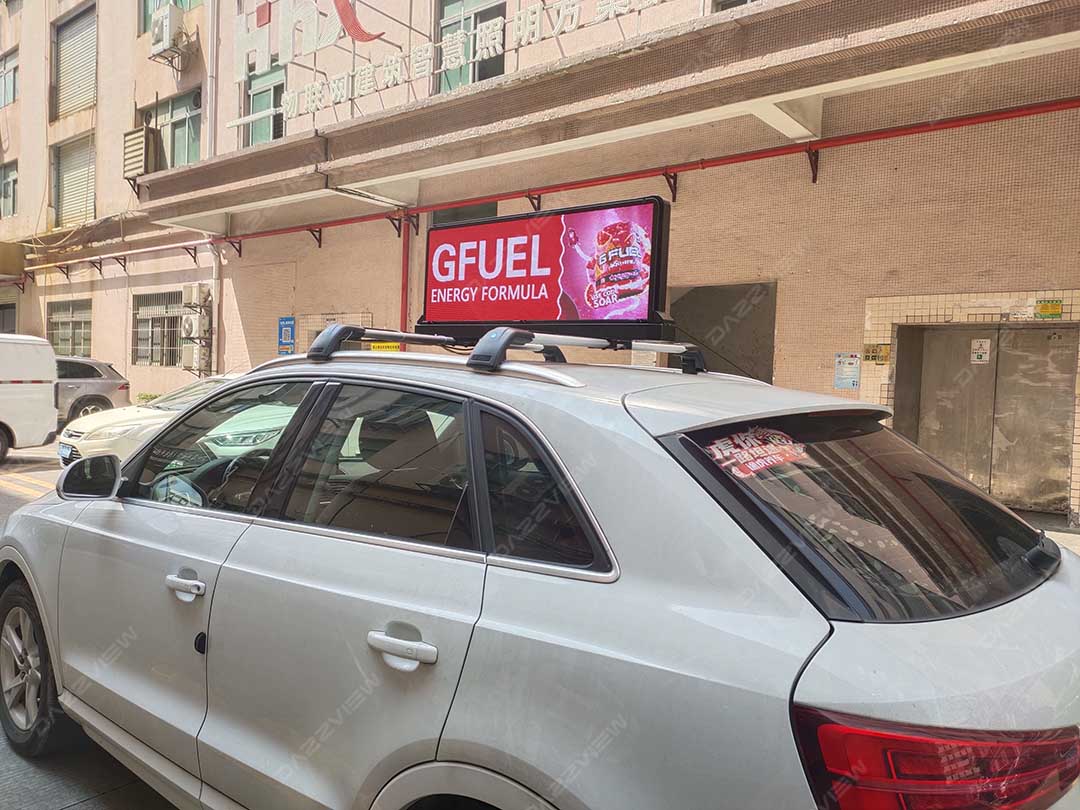

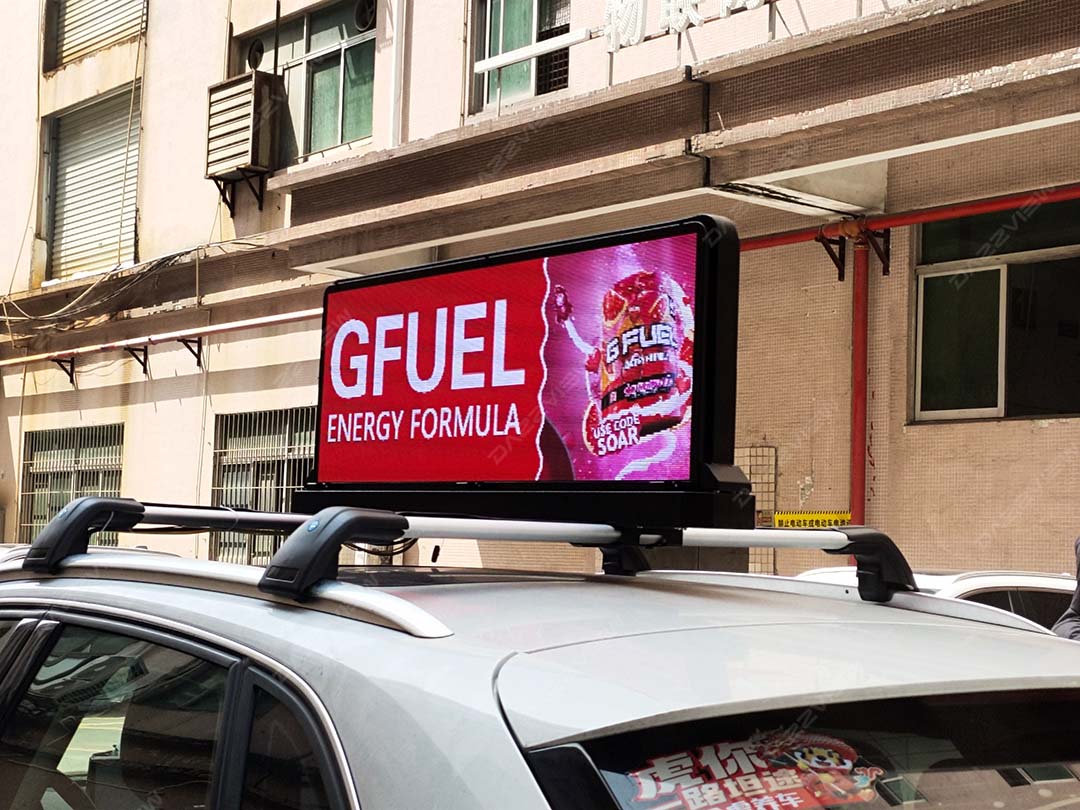

Excellent Solution To Do The Advertising On Top Of The Car!
Taxi top LED display is widely used on the taxi top for advertising with the city media.
Show you how to install the screen
Specs That Will Blow You Away!
| Specification | |||
| Model No. | TTS2.5 | TTS3.33 | TTS5 |
| Pixel Pitch | 2.5mm | 3.33mm | 5mm |
| LED Type | SMD1921 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Density | 160,000dots/㎡ | 90,000dots/㎡ | 40,000dots/㎡ |
| Cabinet material | Steel | ||
| Display size | 960 x 320mm | ||
| Cabinet size(W*H) | 1102 x 405 x 136mm | ||
| Resolution of cabinet(W*H) | 384 x 128 | 288 x 96 | 192 x 64 |
| Weight of cabinet | 19KG | ||
| Best viewing distance | >2.5m | >3.5m | >5m |
| Best viewing angle | 140° | 140° | 140° |
| Brightness | 4500cd/㎡ | 4500cd/㎡ | 4500cd/㎡ |
| Maximum power consumption | 420W/㎡ | 420W/㎡ | 420W/㎡ |
| Average power consumption | 120W/㎡ | 120W/㎡ | 120W/㎡ |
| Driving method | 1/16 scanning | 1/12 scanning | 1/8 scanning |
| Gray scale | 16 bits | ||
| Refresh frequency | 3840Hz | ||
| IP grade | IP65 | ||
| Colors | 16777216 | ||
| Color temperature | 6500-9500k | ||
| Driving device | Constant current | ||
| Working voltage | AC220V/110V±10% | ||
| Working temperature | —20℃~50℃±10% | ||
| Frame frequency | 60Hz | ||
| Life Span | 100,000 hours | ||
