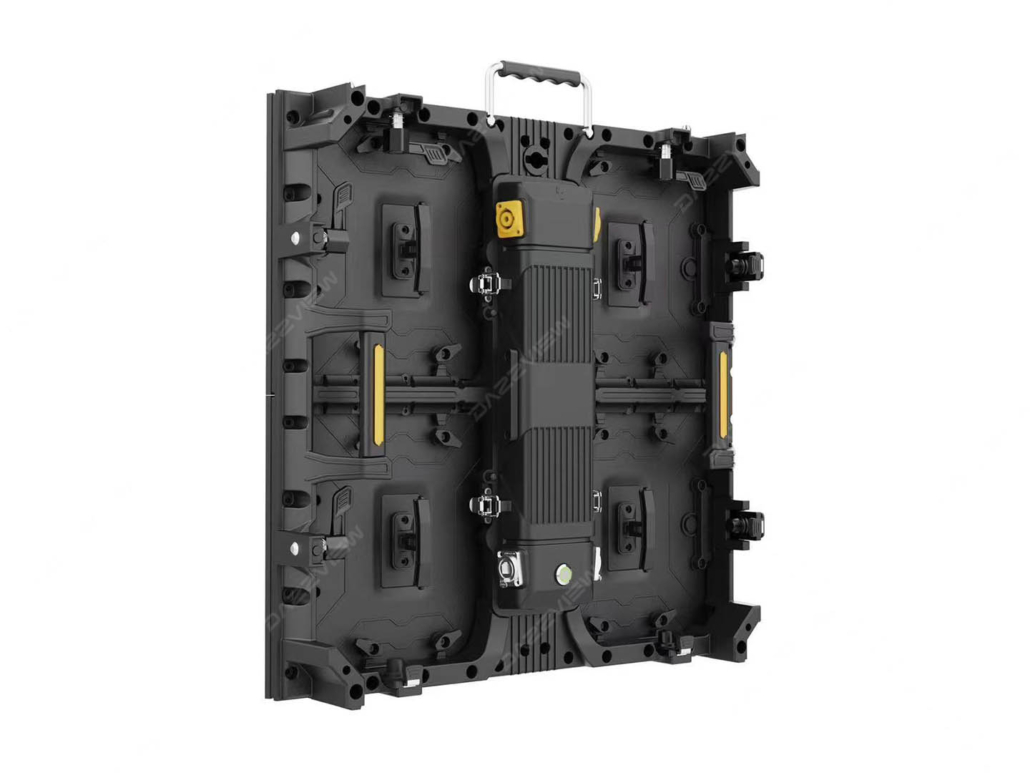

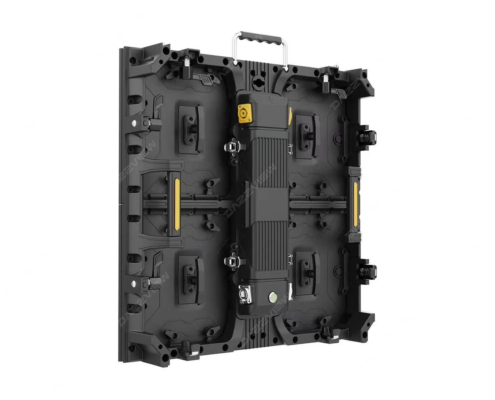

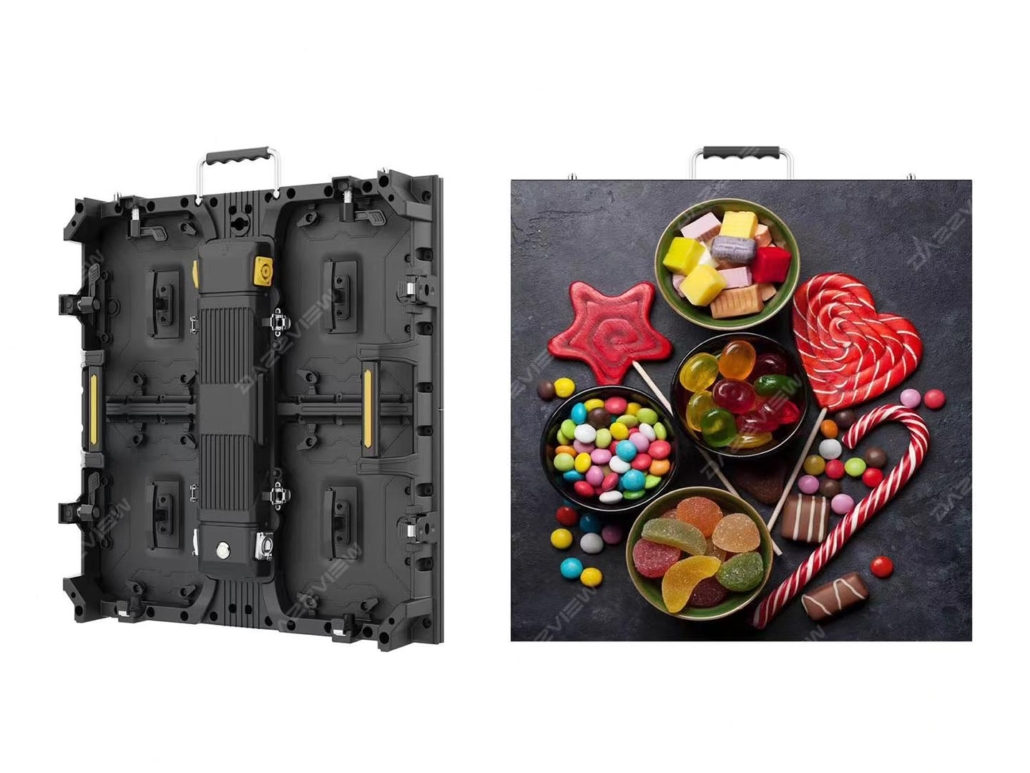

Dazzview DF Series is a 500 × 500 mm rental LED display designed for event production companies, AV rental companies and staging professionals. Its modular cabinet design is ideal for live events, concerts, exhibitions, corporate events and stage productions, providing a flexible and reliable LED video wall solution for repeated rental use.
Product Name: Rental LED Display for Live Events
Product Model: DF Series
Product Description:
Cabinet Size: 500 × 500 mm
Cabinet Weight: 7.5 kg/pc
Indoor Pixel Pitch: P2.6, P2.9, P3.9
Outdoor Pixel Pitch: P2.9, P3.9, P4.8
Key Features:
1. Fast-Lock System
2. Fast Installation
3. Reinforced Cabinet Structure
4. High Compatibility
5. Protective Cabinet Corners
Dazzview DF Series rental LED display is designed for frequent transport, installation and dismantling in live event applications. The lightweight 500 × 500 mm cabinets can be packed in flight cases for convenient transportation and handling. A standard flight case can accommodate 8 pcs of 500 × 500 mm cabinets.
The LED display can be installed as a floor-standing video wall with supporting structures or suspended using hanging bars, providing flexible setup options for concerts, exhibitions, corporate events and stage productions and other live events.
The safety locks on the back of the LED modules help ensure precise alignment and a secure module connection. The front and rear maintenance design provides convenient access for fast servicing and module replacement
In addition to standard flat configurations, the DF Series can be equipped with optional curved locks to create curved LED video walls.

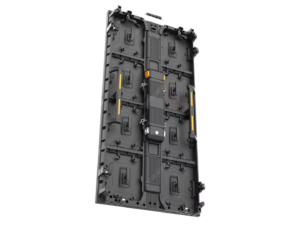

The 500 × 500 mm DF Series and 500 × 1000 mm DFL Series cabinets are fully compatible and can be combined within the same LED video wall. This allows rental companies to use more 500 × 1000 mm cabinets for faster installation and better cost efficiency, while using 500 × 500 mm cabinets where 0.5 m height increments are needed.
The DFS Series flexible LED cabinet is designed for concave, convex, and circular LED display configurations. The standard version allows eight cabinets to form a complete circle, offering a practical and cost-effective solution for most curved display needs. For projects requiring tighter curves, an upgraded version is available that enables a full circle with four cabinets, using enhanced cabinet hardware.
The DFS Series offers different configurations for creating a complete circular LED display. The standard version uses eight cabinets to form a full circle, providing a practical and cost-effective solution for most applications. For projects that require a smaller diameter and tighter curve, an upgraded version is available that allows four cabinets to form a complete circle using enhanced cabinet hardware.
The DF, DFL and DFS Series are compatible and can be combined within the same LED display to achieve more flexible screen sizes and creative designs.
The DFQ Series uses a 45-degree angled cabinet design that allows two cabinets to form a 90-degree corner. It is ideal for right-angle LED displays and LED columns, offering more flexibility for creative stage and event setups.

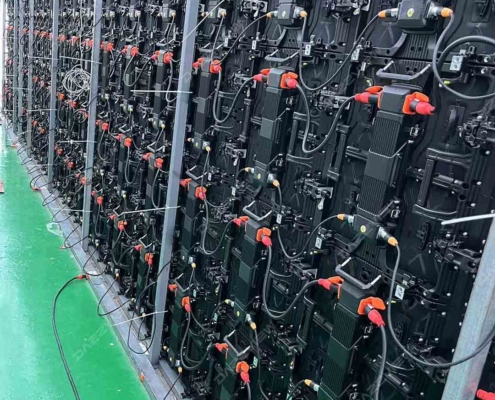

Each rental LED display undergoes aging testing and quality inspection before shipment to verify display performance, stability, and visual consistency.
DF Series rental LED displays are designed for quick on-site installation and dismantling. Actual project installations demonstrate their suitability for concerts, festivals, exhibitions and other live events, providing flexible LED video wall configurations
| Specification – DF series(500x500mm cabinet) | |||||||||
| Model NO. | DF1.9 | DF2.6 | DF2.9 | DF3.9 | DF(O)1.9 | DF(O)2.6 | DF(O)2.9 | DFO3.9 | DFO4.8 |
| Pixel Pitch | 1.953mm | 2.6mm | 2.976mm | 3.91mm | 1.953mm | 2.6mm | 2.976mm | 3.9mm | 4.8mm |
| LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | ||||||||
| Size of module(W*H) | 250mmx250mm | ||||||||
| Resolution of module(W*H) | 128×128 | 96×96 | 84×84 | 64×64 | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Density | 262144dots/㎡ | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 262144dots/㎡ | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 43264dots/㎡ |
| Cabinet material | Die-casting Alu | ||||||||
| Size of cabinet(W*H) | 500mmx500mm | ||||||||
| Weight of cabinet | 7.5KG | ||||||||
| Best viewing distance | >1.9m | >2.6m | >2.9m | >4m | >1.9m | >2.6m | >3m | >4m | >5m |
| Best viewing angle | 140° | ||||||||
| Brightness | 1100cd/㎡ | 1100cd/㎡ | 1100cd/㎡ | 1100cd/㎡ | 4500cd/㎡ | 4500-5000cd/㎡ | 4500-5000cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 650W/㎡ | ||||||||
| Average power consumption | 200W/㎡ | ||||||||
| Driving method | 1/32 scanning | 1/32 scanning | 1/28 scanning | 1/16 scanning | 1/32 scanning | 1/24 scanning | 1/21 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | ||||||||
| Refresh frequency | 3840Hz | ||||||||
| IP grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 | IP65 |
| Colors | 16777216 | ||||||||
| Color temperature | 6500-9500k | ||||||||
| Driving device | Constant current | ||||||||
| Working voltage | AC220V/110V±10% | ||||||||
| Working temperature | —20℃~50℃±10% | ||||||||
| Frame frequency | 60Hz | ||||||||
| Life Span | 100,000 hours | ||||||||
| Specification – DFL series(500x1000mm cabinet) | |||||||
| Model No. | DFL2.6 | DFL2.9 | DFL3.9 | DFL(O)2.6 | DFL(O)2.9 | DFL(O)3.9 | DFL(O)4.8 |
| Pixel Pitch | 2.6mm | 2.976mm | 3.9mm | 2.6mm | 2.976mm | 3.9mm | 4.8mm |
| LED Type | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | ||||||
| Size of module(W*H) | 250mmx250mm | ||||||
| Resolution of module(W*H) | 96×96 | 84×84 | 64×64 | 96×96 | 84×84 | 64×64 | 52×52 |
| Density | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 43264dots/㎡ |
| Cabinet material | Die-casting Alu | ||||||
| Size of cabinet(W*H) | 500mmx1000mm | ||||||
| Weight of cabinet | 13KG | ||||||
| Best viewing distance | >2.6m | >2.9m | >4m | >2.6m | >3m | >4m | >5m |
| Best viewing angle | 140° | ||||||
| Brightness | 1100cd/㎡ | 1100cd/㎡ | 1100cd/㎡ | 4500-5000cd/㎡ | 4500-5000cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/32 scanning | 1/28 scanning | 1/16 scanning | 1/24 scanning | 1/21 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 14-16 bits | ||||||
| Refresh frequency | 3840Hz | ||||||
| IP grade | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 | IP65 |
| Colors | 16777216 | ||||||
| Color temperature | 6500-9500k | ||||||
| Driving device | Constant current | ||||||
| Working voltage | AC220V/110V±10% | ||||||
| Working temperature | —20℃~50℃±10% | ||||||
| Frame frequency | 60Hz | ||||||
| Life Span | 100,000 hours | ||||||
